USB Modules
C8209 Series
The C8209 series is our USB video processing platform for endoscope camera modules. It works with muC103, muC108, muC110, muC112, mCam703, and mCam101 cameras, automatically detecting the attached sensor and streaming video to a computer without additional drivers. An integrated LED brightness control circuit and UVC Extension Unit commands provide fine control over illumination, white balance calibration, and firmware inquiries.
A UVC Extension Unit extends standard USB Video Class capabilities with advanced image-processing functions, compression options, and device-specific controls—ideal for specialized medical and industrial workflows.
Key Features
- Compact 47 mm × 17.5 mm board size
- USB Type-C (USB 2.0) connectivity
- Integrated LED brightness control circuitry
- Automatic sensor detection
- UVC compliant—no driver installation required
Compatibility
| Module | Compatible Cameras | LED |
|---|---|---|
| C8209DP | muC103P / muC108P / muC110P | External 1 W LED (not included) |
| C8209DL | muC103L1 / muC103L2 / muC110L1 | On-camera 20 mA LED |
| C8209ML | mCam703L2 / mCam101L2 / mCamA10L4 | On-camera 20 mA LED |
| C8209HP | muC103P / muC110P / muC112P | External 1 W LED (not included) |
| C8209HL | muC103L1 / muC103L2 / muC110L1 / muC112L2 / muC112L2S | On-camera 20 mA LED |
Get This Product
For purchasing information, please visit our shop.
UCSPF1 Kit

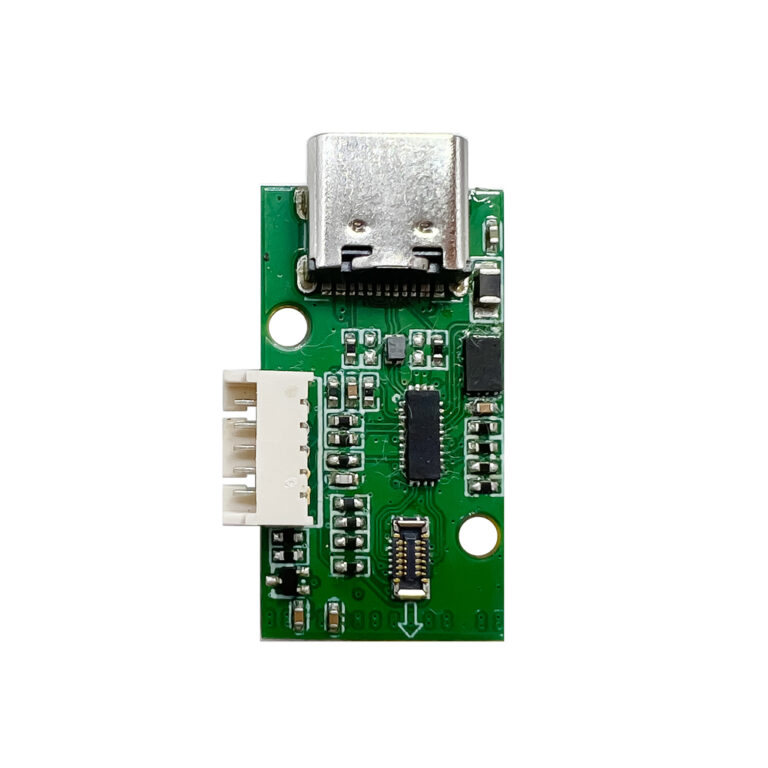

The UCSPF1 kit is a flexible USB imaging module built around COMedia's OV9734-based camera. Its compact, cost-effective design makes it ideal for medical and industrial applications that require reliable HD video in confined spaces.
Key Features
- Max resolution: 1280 × 720 @ 30 fps
- USB 2.0 Type-C interface
- UVC plug-and-play compatibility
- 5 V USB power
- Integrated LED driving circuit for tip illumination

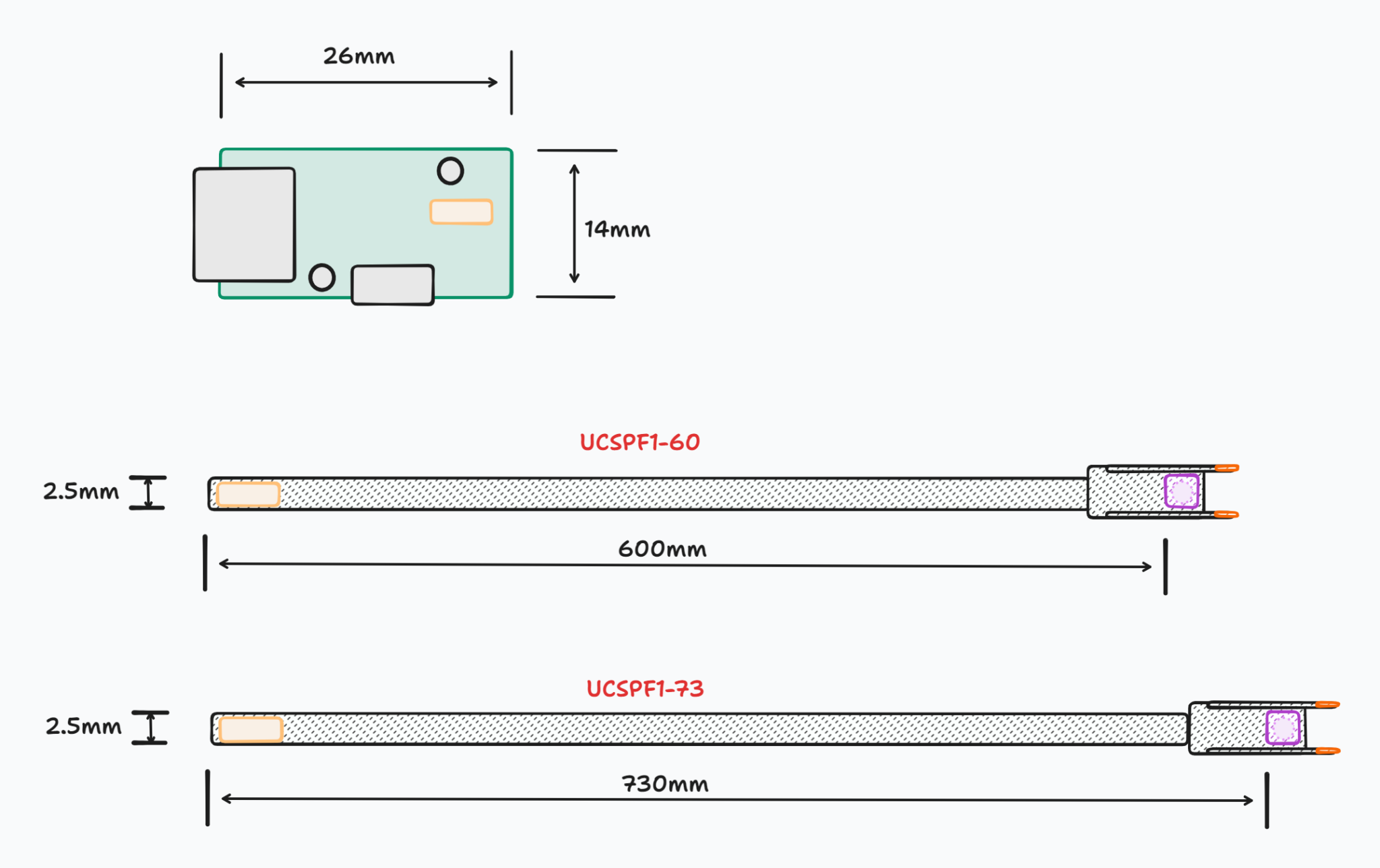

- Compact footprint (26 mm × 14 mm)
- Snapshot and auto white balance functions

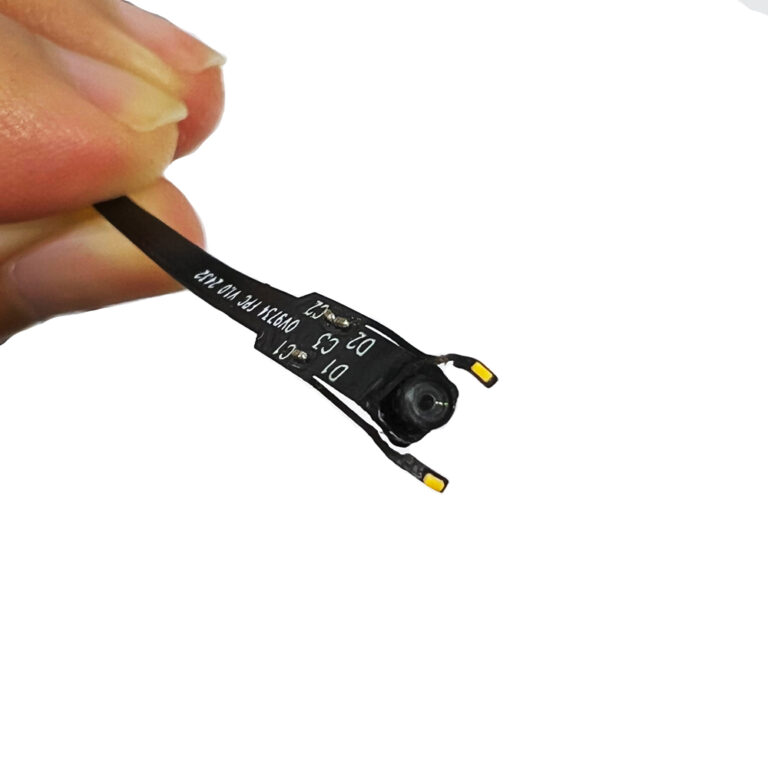

- Flexible cable camera design
- Supports MJPEG and YUY2 formats
Get This Product
For purchasing information, please visit our shop.
