muC110 Series
Product Overview
The muC110 series utilizes the OCHTA10, which employs the most advanced CMOS mixed-signal technology. This chip integrates an image array, signal processing, timing, and control circuitry on a single platform. The OCHTA10 delivers high-quality video at 400 x 400 resolution and 30 frames per second (fps). It is ideally suited for applications demanding a compact form factor, low power consumption, and cost-effectiveness. Its design makes it an excellent choice for a diverse range of endoscopic applications, including medical, veterinary, and industrial uses.
Key Features

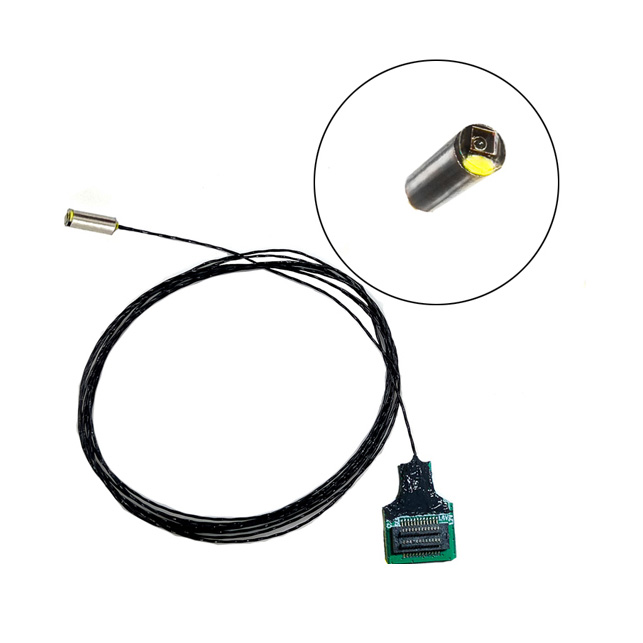

- Two options: no LED / one LED

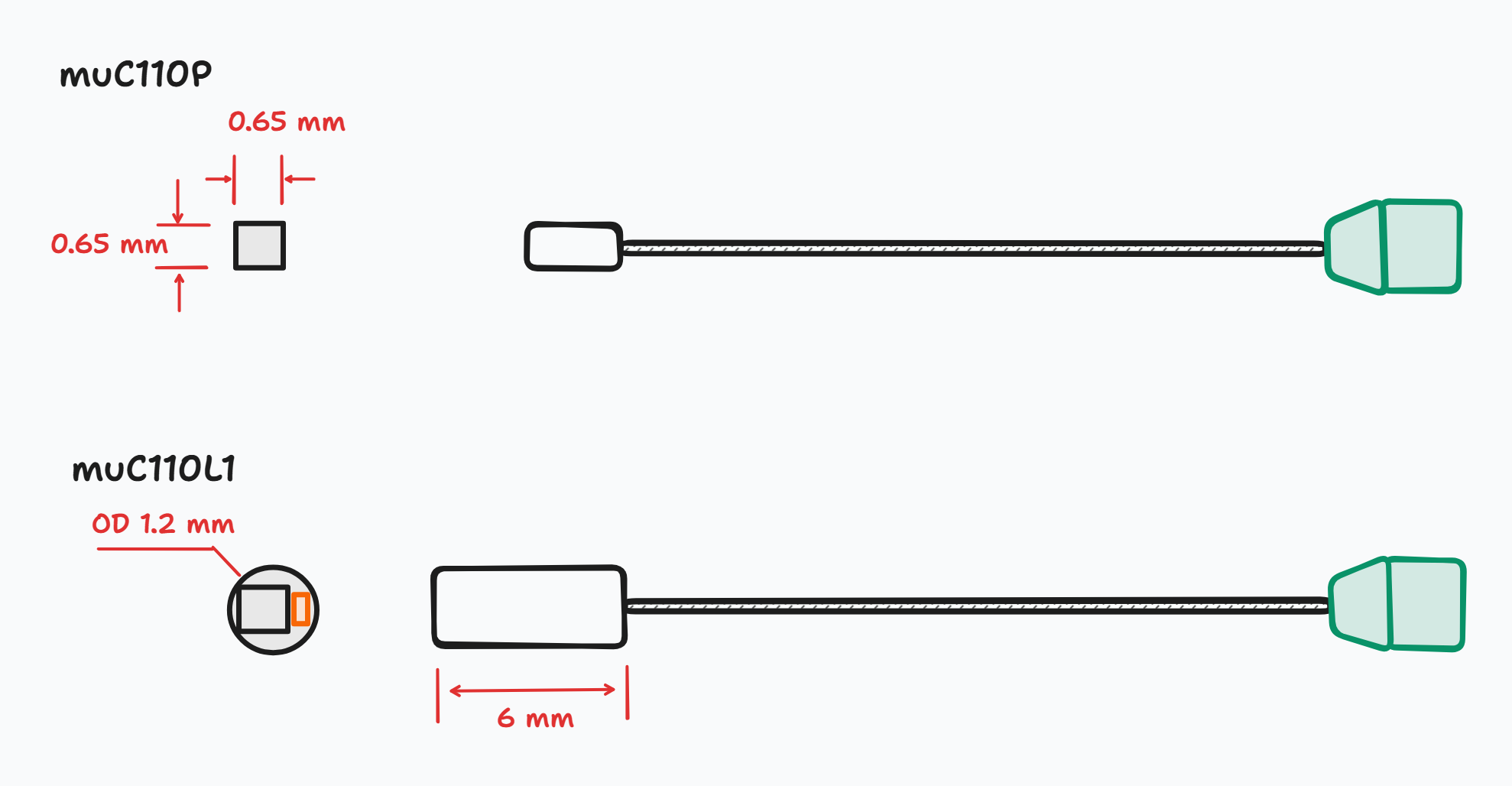

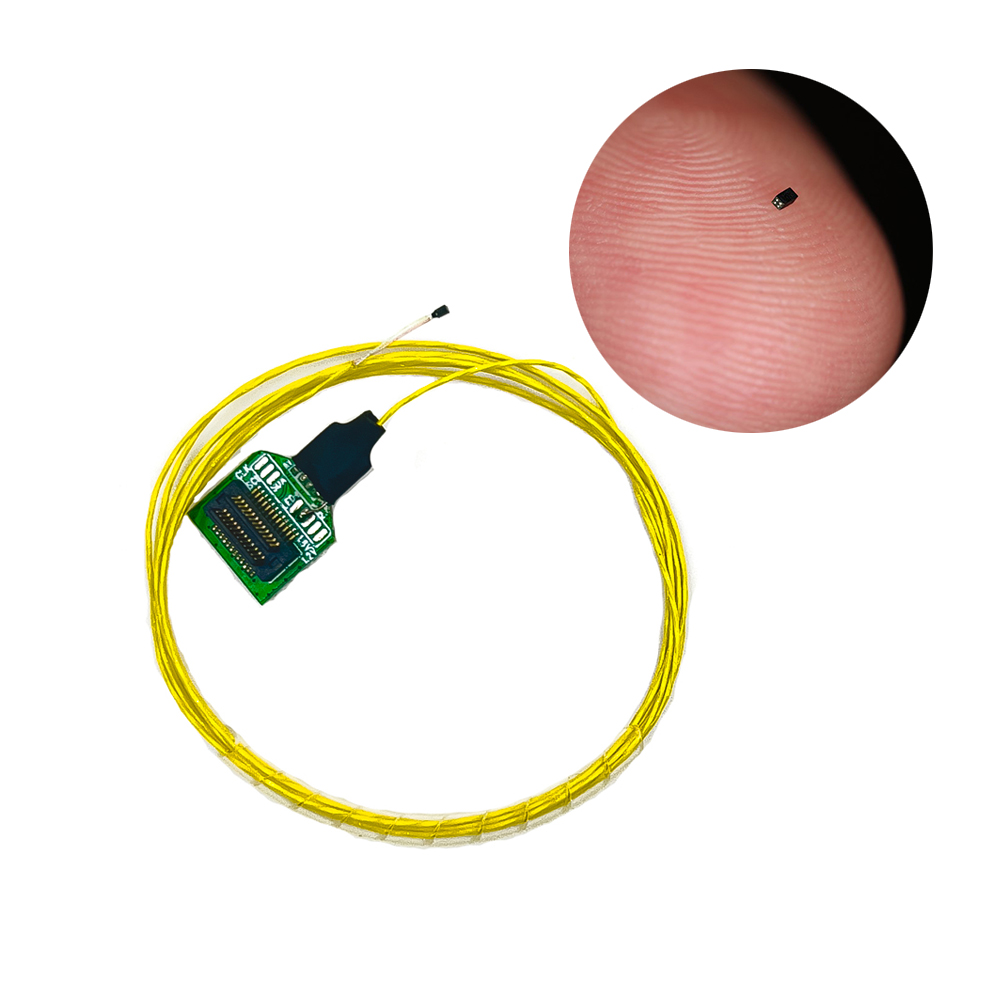

- Small tip size: 0.65x0.65mm and 1.2mm OD
- Resolution: 400×400 pixels
- Operation voltage 3.3V
- Low power consumption
- Cable size: 0.5mm OD
- Cable length: 1-4M
Specifications
| Specification | Value |
|---|
| Video Output | Analog |
| CMOS sensor | OCHTA10 |
| FOV | 120 deg diagonal |
| F/No | 2.8 |
| Picture Element | 400x400 pixels |
| Operation Voltage | 3.3VDC |
| Optical Format | 1/31” |
| Power consumption | 25mW |
| Working Distance | 3mm ~ 30mm |
| Data format | Raw RGB |
| Pixel size | 1.008x1.008µm |
| Scan mode | Progressive |
| Clock rate | 4MHz |
| IR cut off | 665+/-10nm |
