HDMI Modules

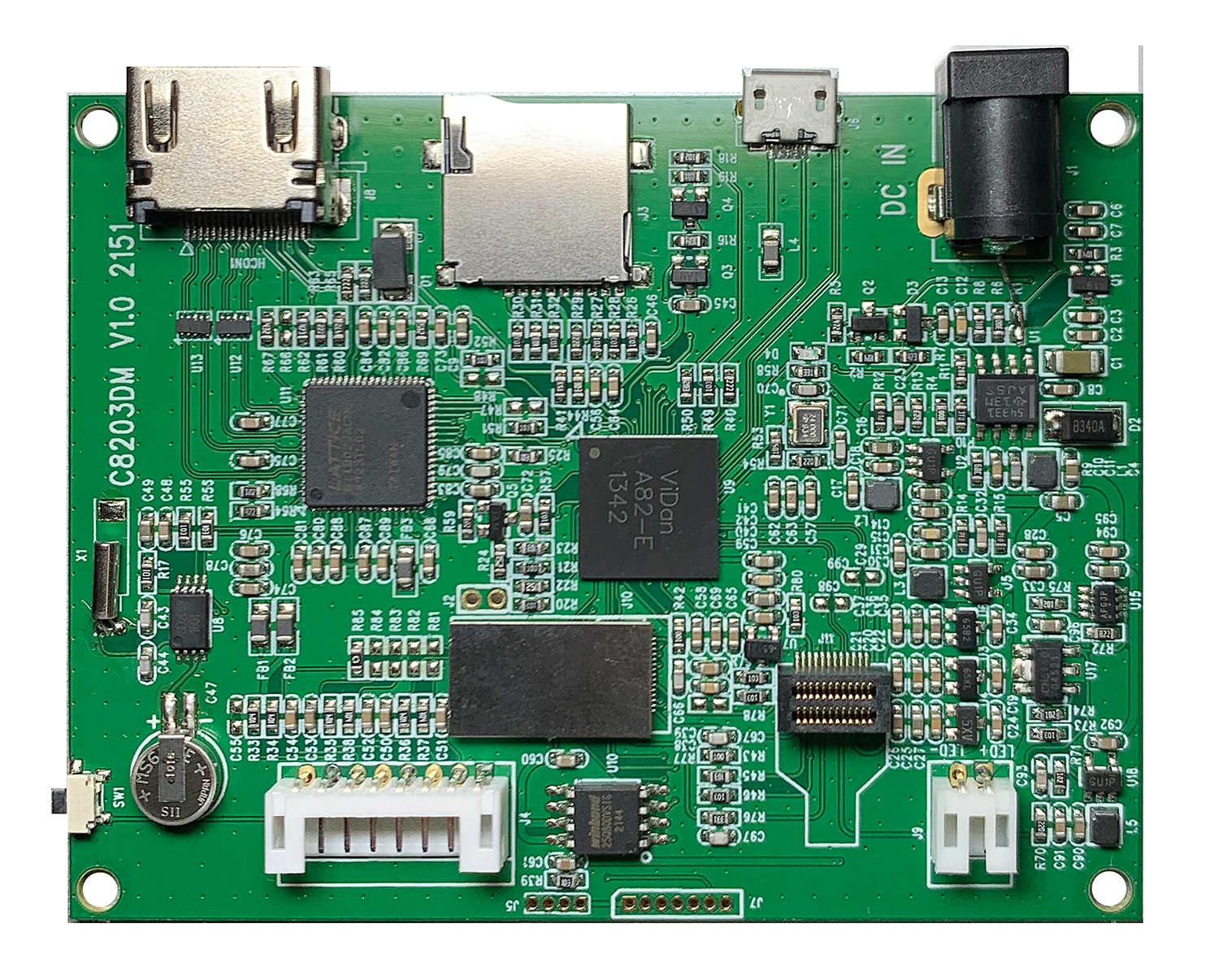

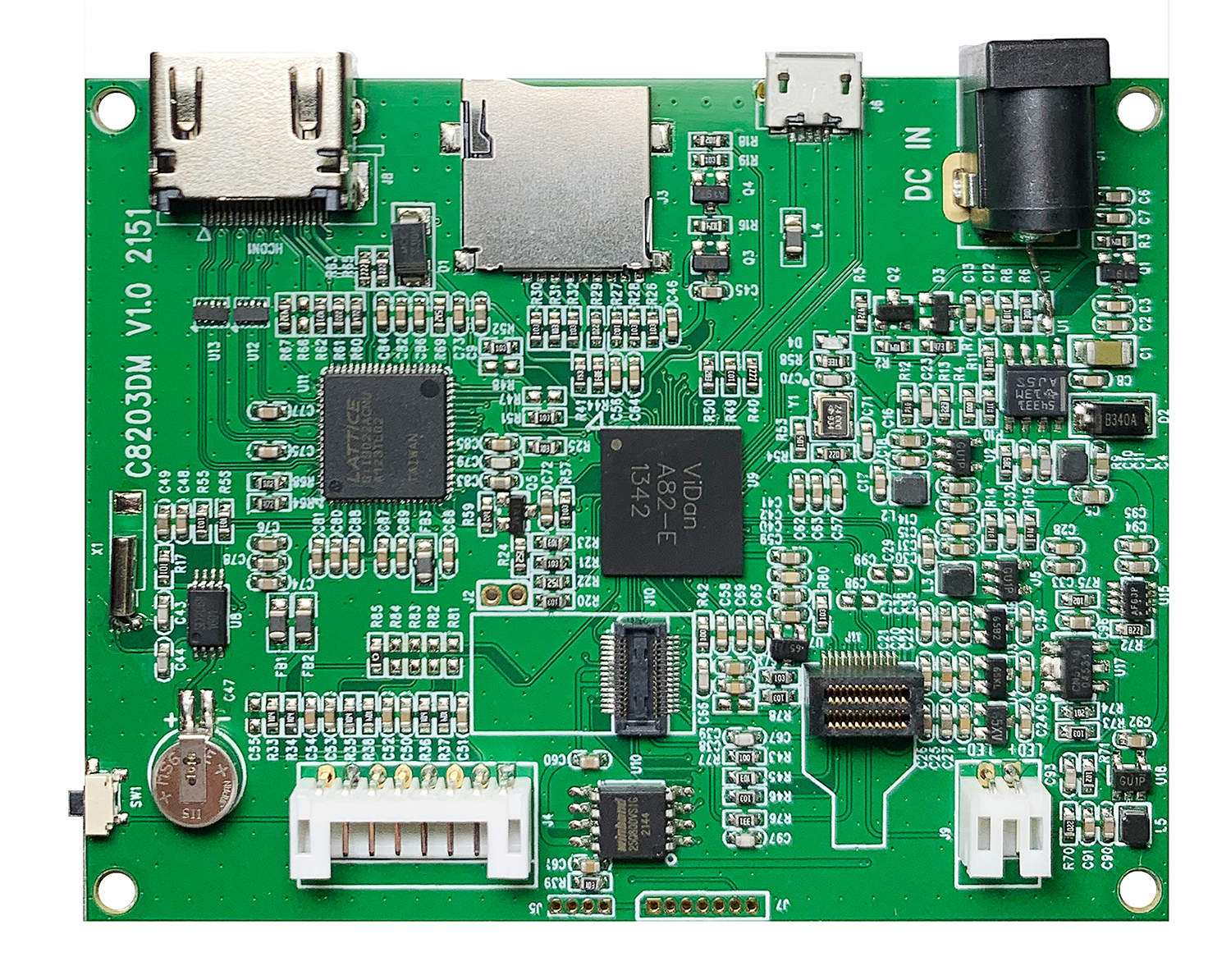

C8203DP / C8203DL / C8203ML / C8203HP / C8203HL
These HDMI backend modules are designed for the muC and mCam camera series. They output live video to HDMI monitors, support photo snapshots and video recording to microSD storage, and operate from a 12 V DC supply. Variants provide options for driving external power LEDs or controlling on-camera LEDs depending on the camera model.
D: DVP camera
M: MIPI camera
P: External power LED
L: On-camera LED(s)
Note: M variants do not support external power LED.
Key Features
- Real-time 1280 × 720 @ 60 fps HDMI output
- Auto sensor detection
- Simple operation for automatic white balance
- AVI video recording and JPG snapshot capture
- MicroSD storage up to 32 GB
- Image quality fine tuning capability
- RTC with battery backup
- Constant-current driver for external power LED
- Built-in LED brightness control for optimal imagery
- DC 12 V input (supports up to 18 V)
- Dedicated GPIO inputs for key controls
Compatibility
| Module | Compatible Cameras | LED |
|---|---|---|
| C8203DP | muC103P / muC108P / muC110P | External 3 W LED (not included) |
| C8203DL | muC103L1 / muC103L2 / muC110L1 | On-camera 20 mA LED |
| C8203ML | mCam703L2 / mCam101L2 / mCamA10L4 | On-camera 20 mA LED |
| C8203HP | muC110P / muC103P / muC112P | External 3 W LED (not included) |
| C8203HL | muC110L1 / muC103L1 / muC103L2 / muC112L2 / muC112L2S | On-camera 20 mA LED |
