muC103 Series

Product Overview

The muC103 series utilizes the OVM6946, which employs the most advanced CMOS mixed-signal technology. This chip integrates an image array, signal processing, timing, and control circuitry on a single platform. The OVM6946 delivers high-quality video at 400 x 400 resolution and 30 frames per second (fps). It is ideally suited for applications demanding a compact form factor, low power consumption, and cost-effectiveness. Its design makes it an excellent choice for a diverse range of endoscopic applications, including medical, veterinary, and industrial uses.

Key Features

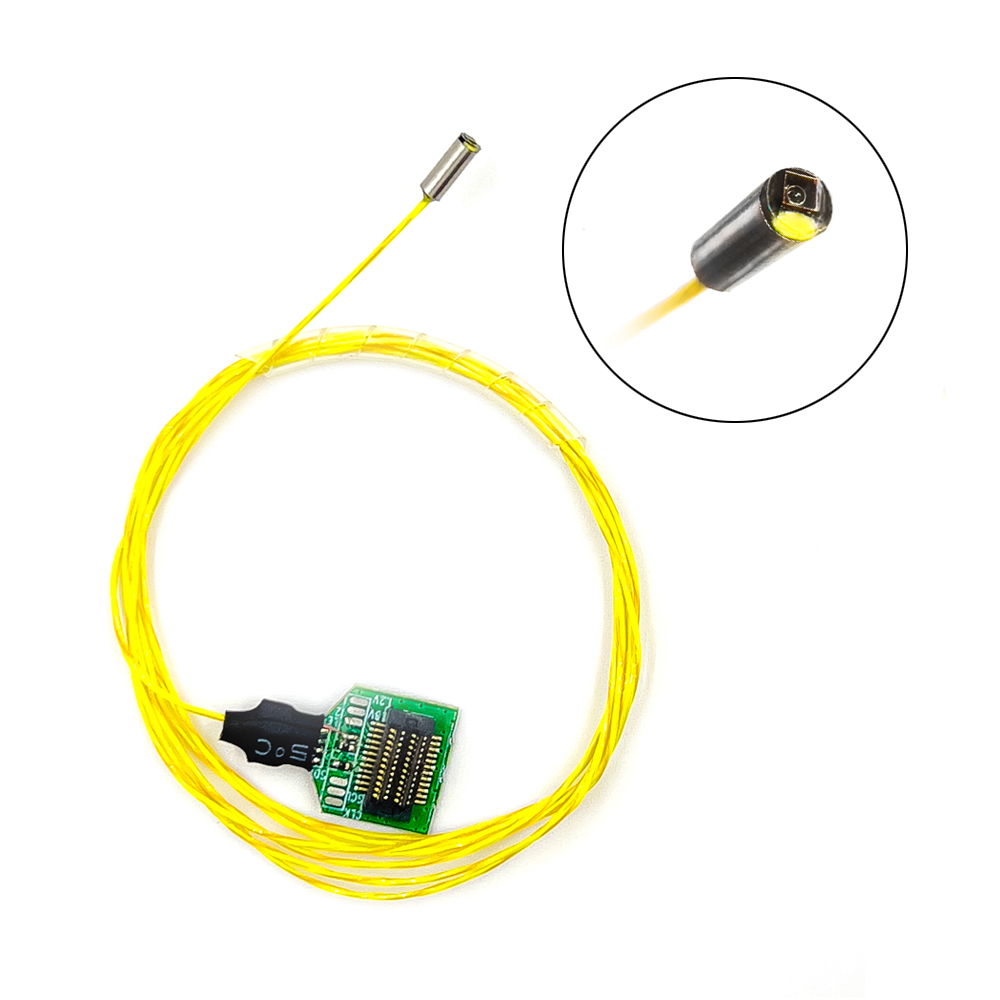

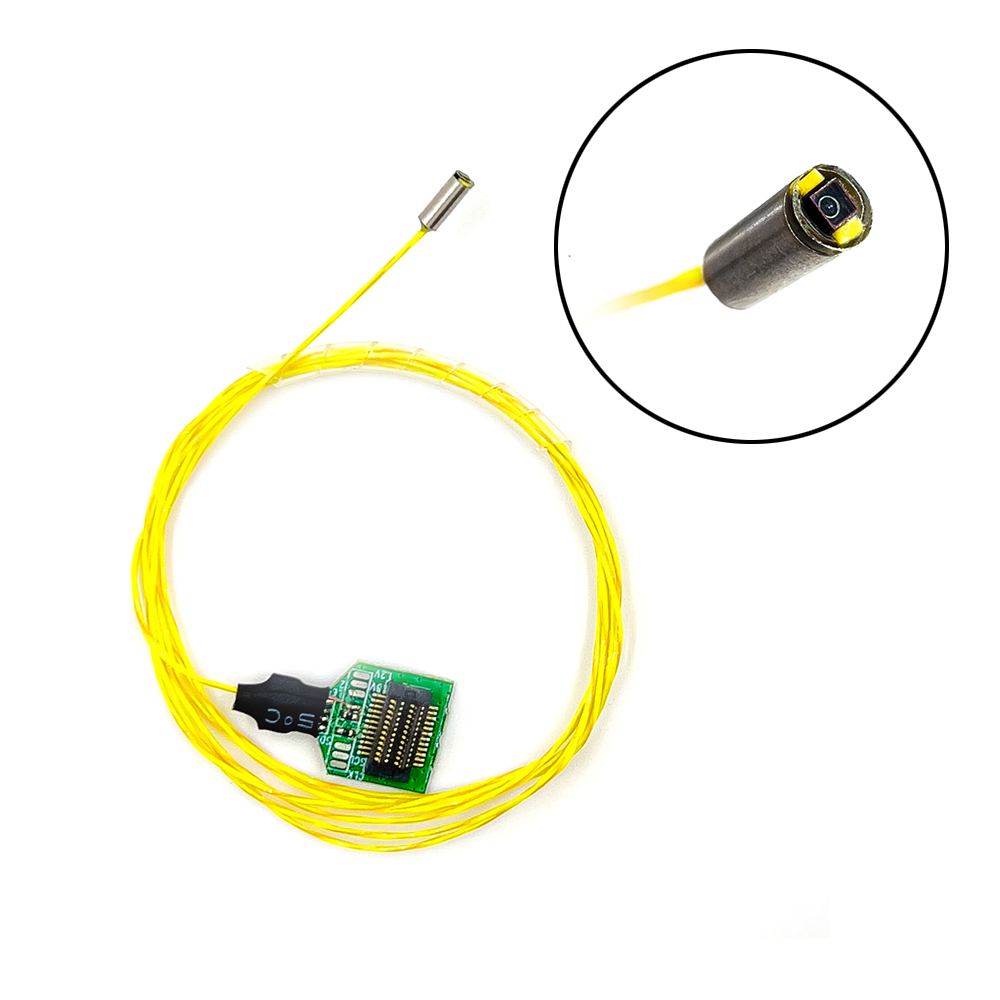

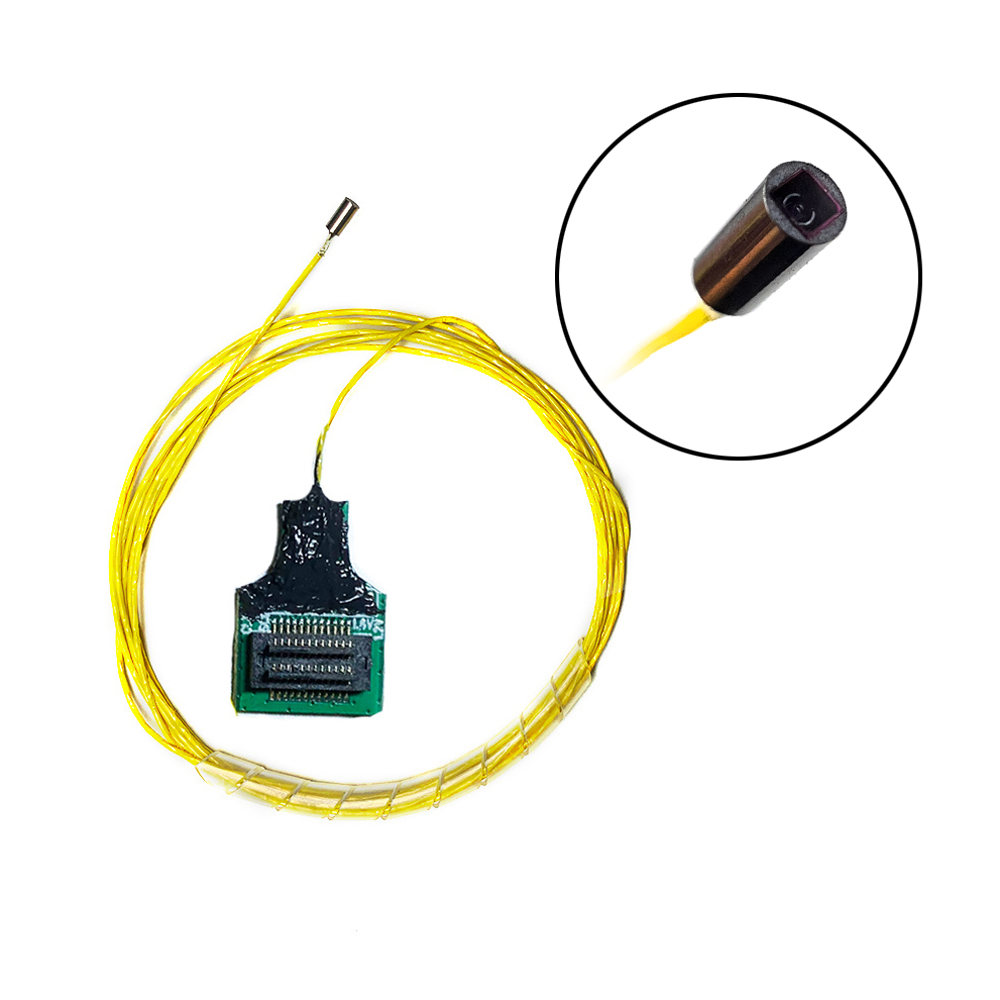

• Three options: no LED / one LED / two LEDs

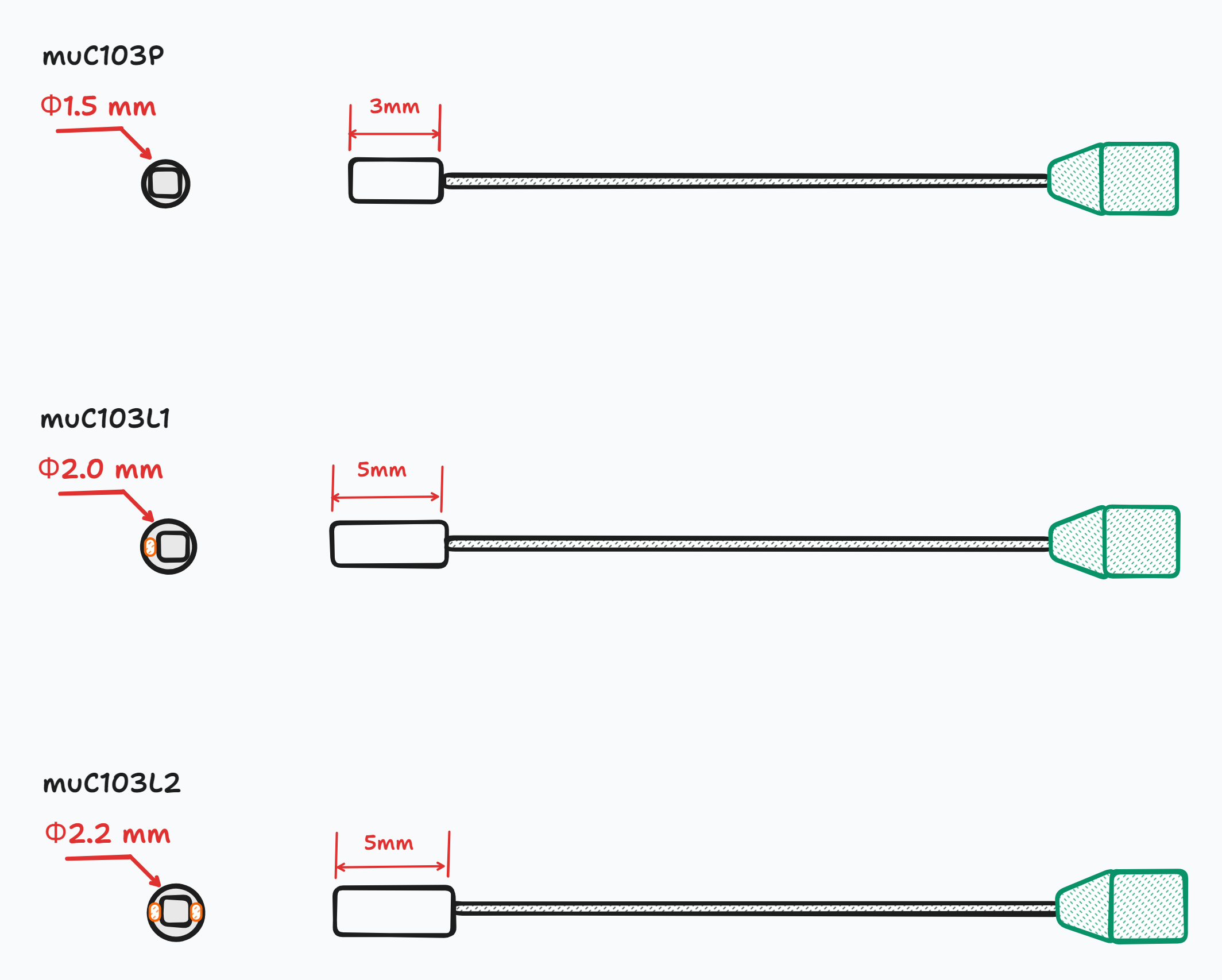

• Small tip size: 1.5mm / 2.0mm / 2.2mm OD
• Resolution: 400×400 pixels
• Operation voltage 3.3V
• Low power consumption
• Cable size: 0.5mm OD
• Cable length: 1-4M

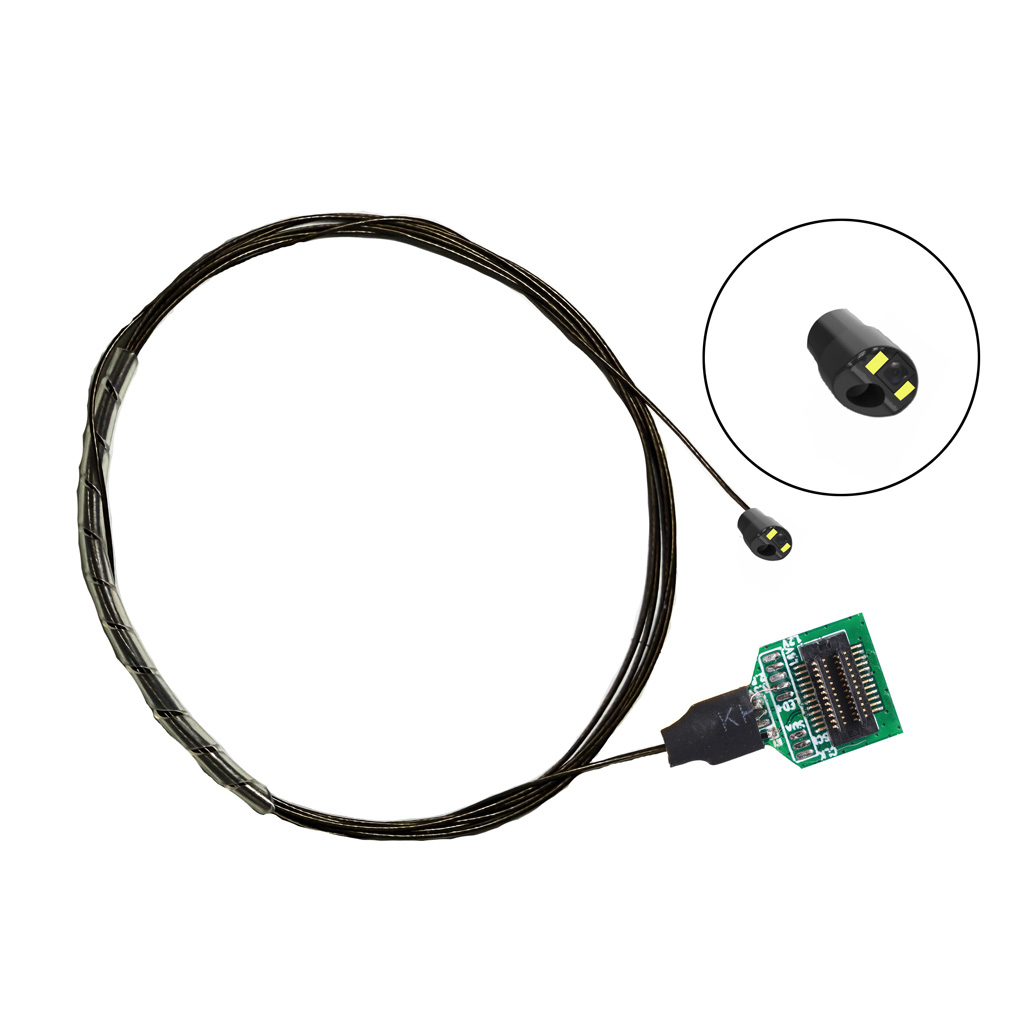

muC103T2812 Module

The muC103T2812 module pairs the OVM6946 sensor with a plastic distal end cap and built-in illumination, making it ideal for procedures that require a slightly larger tip with an integrated working channel.

• Tip outer diameter: 2.8 mm
• One working channel with 1.2 mm inner diameter
• Integrated dual LED lighting
• 400 × 400 pixel resolution
• Operates at 3.3 V with low power draw
• 0.58 mm OD cable available in 1–4 m lengths

Specifications
