COMedia Ltd.

AA Series Digital Sensor Modules

COMedia AA modules integrate OmniVision CMOS image sensors with a digital video port that outputs 8/10-bit data in full-frame, sub-sampled, or windowed formats. Each module includes serial camera control bus connectivity and operates from a single 3.3 V supply, making them ideal for embedded imaging platforms.

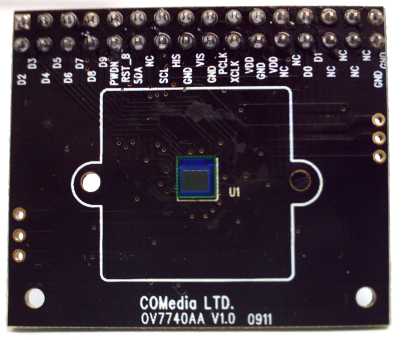

AA7740 Module

Based on the OV7740 VGA sensor, AA7740 offers high sensitivity imaging in a compact 41 × 31 mm footprint with optional integrated lens.

• VGA CMOS image sensor OV7740
• Sensor array 640 × 480 pixels
• 1/5" lens format
• Progressive scan output
• Serial Camera Control Bus interface
• Single 3.3 V operation
• Low power consumption (<120 mW)
• Optional built-in lens

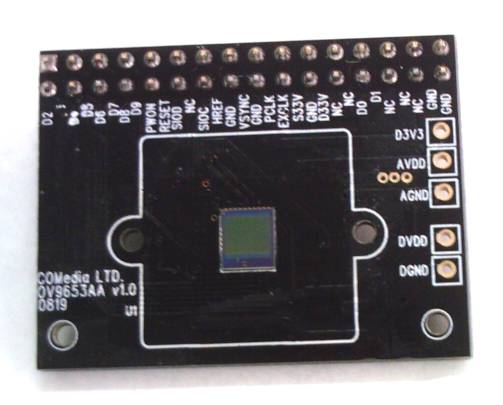

AA9653 Module

AA9653 leverages the OV9653 megapixel sensor and supports multiple output formats and frame rates while retaining the same compact board size.

• Megapixel CMOS image sensor OV9653
• Sensor array 1300 × 1028 pixels
• 1/4" lens format
• Supports SXGA, VGA, QVGA, CIF, QCIF
• Frame rates: VGA 30 fps, QVGA 60 fps, QCIF 120 fps
• Output formats: RAW RGB, GRB422, YUV422
• Progressive scan
• Serial Camera Control Bus interface
• Single 3.3 V operation
• Low power consumption (<120 mW)
• Optional built-in lens
