muC112 Series
Product Overview

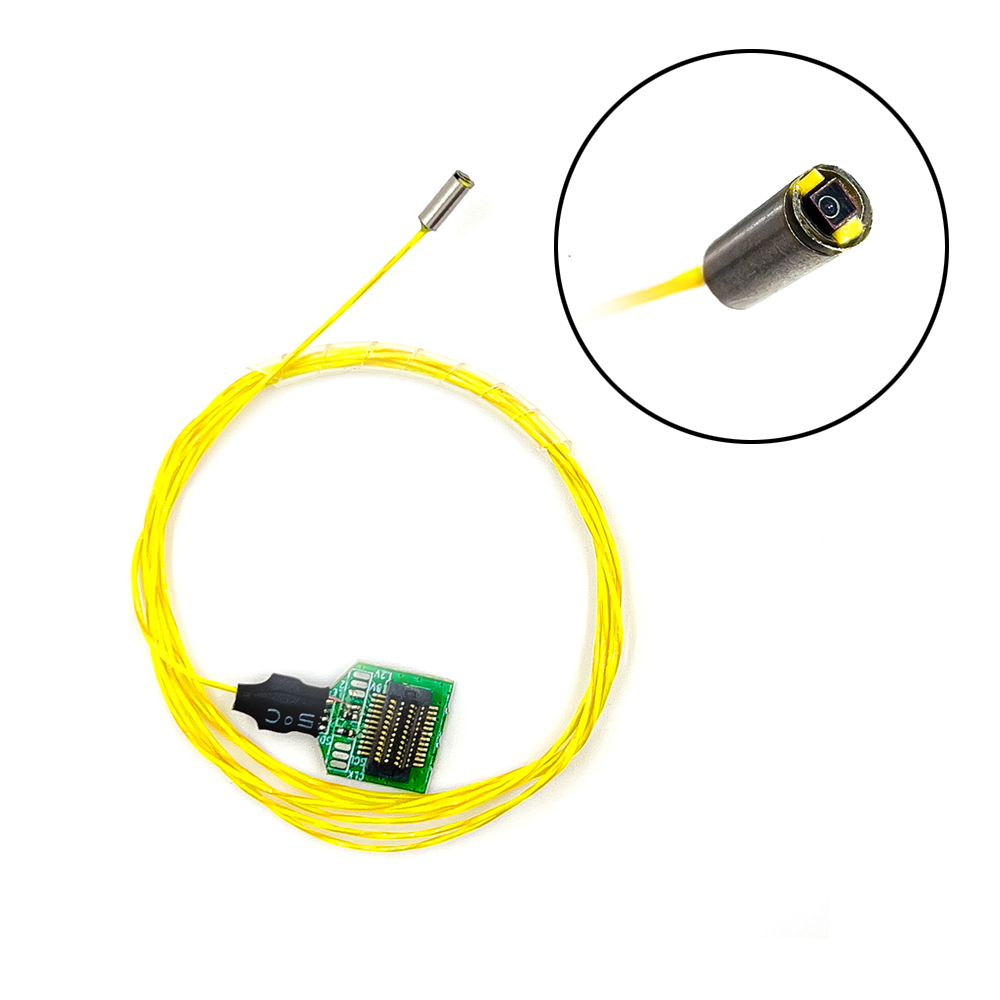

The muC112 series utilizes the OCHFA10, which employs the most advanced CMOS mixed-signal technology. This chip integrates an image array, signal processing, timing, and control circuitry on a single platform. The OCHFA10 delivers high-quality video at 720 x 720 resolution and 30 frames per second (fps). It is ideally suited for applications demanding a compact form factor, low power consumption, and cost-effectiveness. Its design makes it an excellent choice for a diverse range of endoscopic applications, including medical, veterinary, and industrial uses.
Key Features
- Two options: no LED / two LEDs

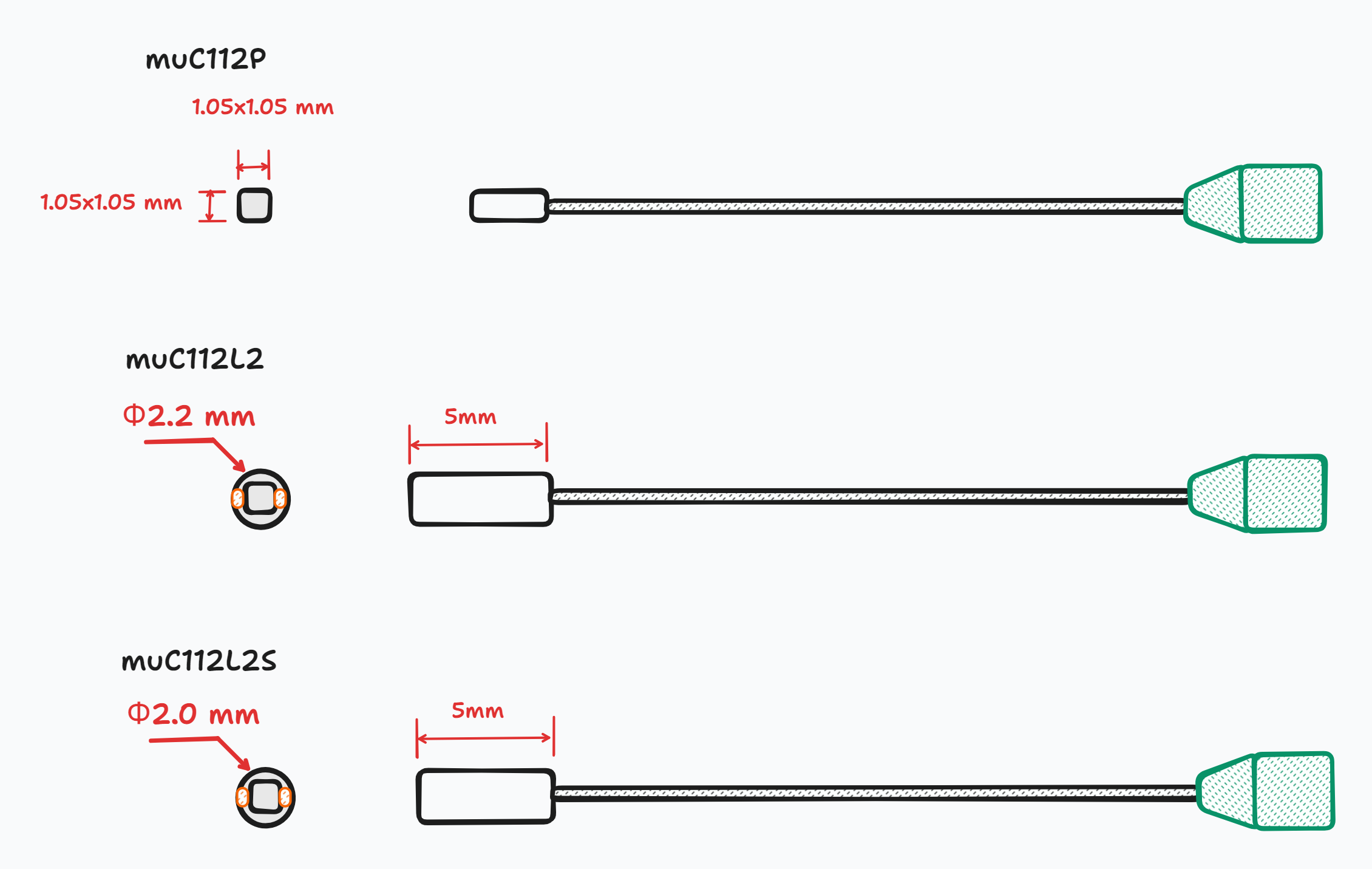

- Small tip size: 1.05x1.05mm and 2.2/2.0mm OD
- Resolution: 720x720 pixels
- Operation voltage 3.3V
- Low power consumption
- Cable size: 0.5mm OD
- Cable length: 1-3M
Specifications
| Specification | Value |
|---|
| Video Output | Analog |
| CMOS sensor | OCHFA10 |
| FOV | 120 deg diagonal |
| F/No | 5.0 |
| Picture Element | 720x720 pixels |
| Operation Voltage | 3.3VDC |
| Optical Format | 1/17.5" |
| Power consumption | 25mW |
| Working Distance | 5mm ~ 50mm |
| Data format | Raw RGB |
| Pixel size | 1.008x1.008µm |
| Scan mode | Progressive |
| Clock rate | 4MHz |
| IR cut off | 665+/-10nm |
